Balance of System
Shop solar BOS components — PV wire, combiner boxes, DC disconnects, breakers, fuses, surge protection, and conduit. Wholesale pricing on NEC-compliant balance of system hardware for professional installers.
Products

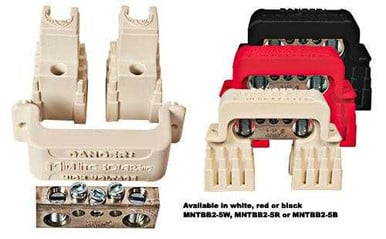

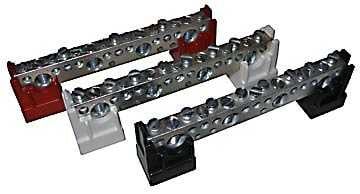

2/0 Busbar, Insulator And Cover with 5 Wire LocationsSKU: MNTBB2
Products

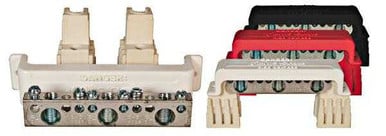

2/0 Busbar, insulator and cover with 9 wire locationsSKU: MNTBB2-9
Products

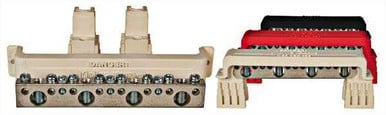

Busbar, insulator and cover with 15 wire locationsSKU: MNTBB2-15
Products

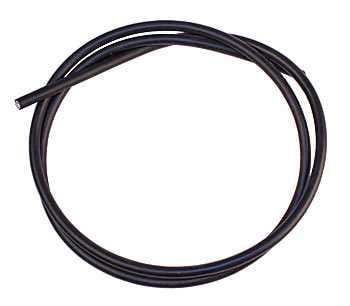

Communication Cable for Tigo, Sol-ark, CAT 5e, 600v 90c USE-2 Sunlight Resistant UL-444SKU: CAT5E600V
Products

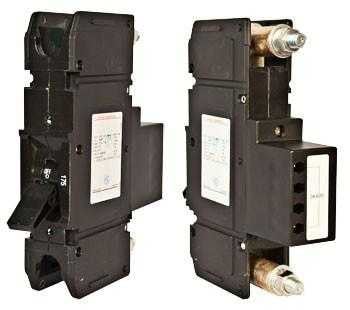

Midnite Solar MNEDC175RT Remote Trip 175 Amp 125VDC Panel Mount BreakerSKU: MIDMNEDC125RT
Products

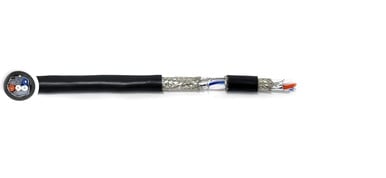

RS-485 Shielded 2 Pair 24AWG Communication cable for Tigo, Sol-ark, Modbus, Canbus - UL 1685SKU: RS485COMS
Balance of System (BOS) Buying Guide
Balance of system components are everything between the panels and the inverter output — wire, overcurrent protection, disconnects, combiners, and surge protection. Properly specified BOS hardware protects the system, satisfies code, and passes inspection the first time.

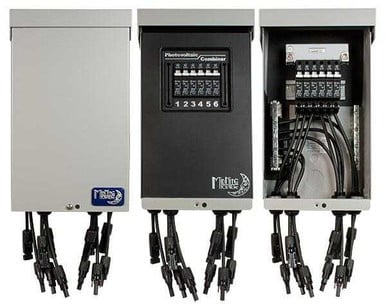

Combiner Boxes

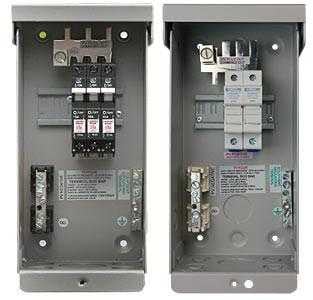

A DC combiner box serves as the central hub when a system has more than two or three panel strings. Each string connects through its own overcurrent protection device (fuse or breaker) before feeding into a common busbar. This isolates a faulted string and prevents backfeed from the remaining strings. Key internal components include string fuses or breakers, positive and negative busbars, a DC disconnect or isolator switch, a surge protection device (SPD), and a grounding bar. For residential systems a 2–4 string combiner is typical; commercial arrays may use 12–24 string boxes with integrated string-level monitoring.
Wire, Conduit & Connectors

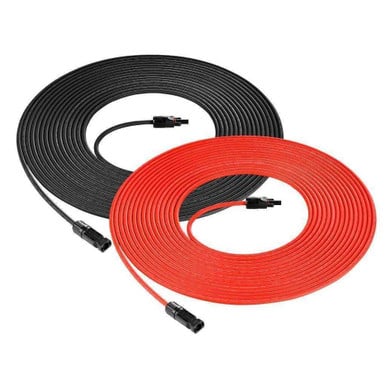

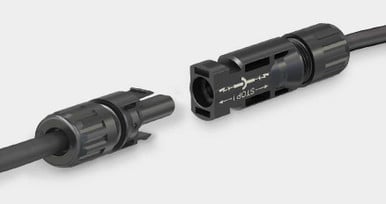

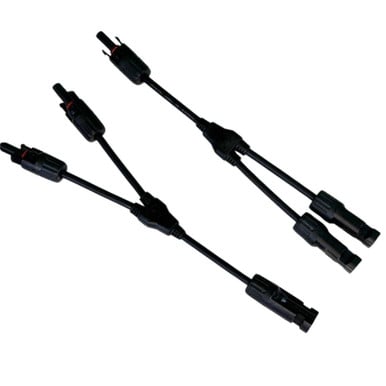

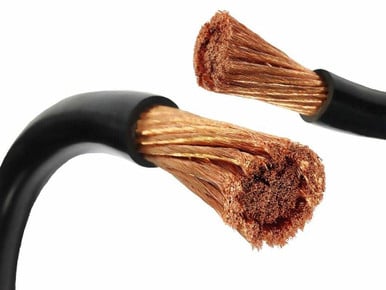

PV wire (USE-2 / PV Wire) is rated for direct sunlight exposure and higher temperatures than standard building wire. Size conductors to keep voltage drop under 3 % over the full run from combiner to inverter — the three factors are amperage, voltage, and distance. Module-level connections use MC4 or equivalent locking connectors rated for the system voltage. All exposed wiring on rooftops must be secured in conduit or approved cable management per NEC Article 690. Use copper conductors for all DC circuits; aluminum is acceptable on the AC side for larger feeders where cost savings justify the larger conduit size.
Fuses, Breakers & Disconnects

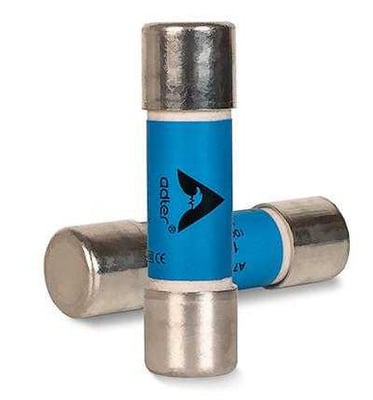

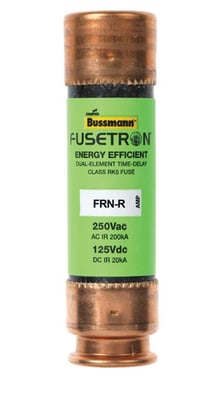

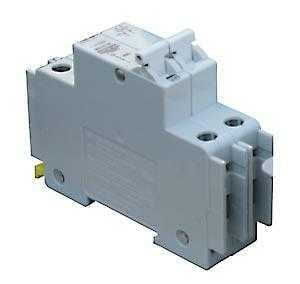

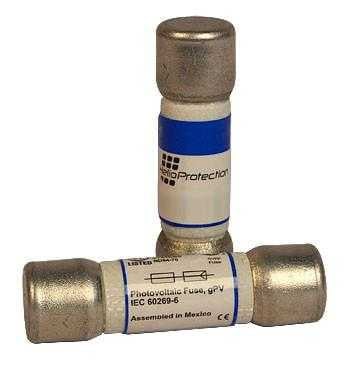

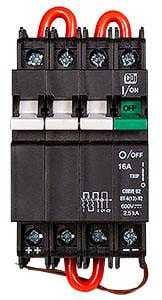

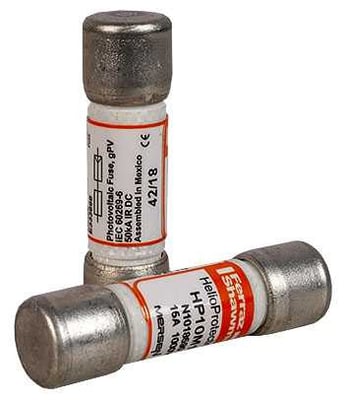

Overcurrent protection devices must be DC-rated — standard AC breakers cannot safely interrupt a DC arc. Size string fuses at 1.56 times the panel short-circuit current (two NEC 1.25x multipliers stacked). DC disconnects are required between the array and the inverter and between the inverter and the grid, giving firefighters and technicians visible isolation points. Use fuses where cost matters and replacement is simple; use breakers where frequent resets are expected, such as on commercial arrays where nuisance trips during commissioning are common.
Surge Protection & Grounding

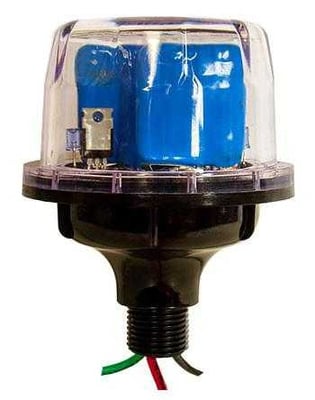

A Type 2 DC surge protection device (SPD) at the combiner box protects against lightning-induced transients and switching surges. SPDs should be installed with the shortest possible lead length to the grounding bar — long leads reduce clamping effectiveness. Equipment grounding connects all metallic racking, enclosures, and frames to the grounding electrode system per NEC 250. Verify that all BOS components carry the appropriate listings: UL 248-19 for PV fuses, UL 489B for DC breakers, and UL 1449 for SPDs.
Need help choosing?
Our team can help you select the right balance of system for your project.
