MidNite Solar
80 Or 100 Amp Din Rail Mount Breaker - 100
SKU: MNEPV100
$65.00
Options
80 Or 100 Amp Din Rail Mount Breaker - 100
MNEPV100
$65.00
80 Or 100 Amp Din Rail Mount Breaker - 80
MNEPV80
$65.00
Categories
Have questions? Our team can help you select the right equipment for your project. Call 978-451-6890.
Product Overview

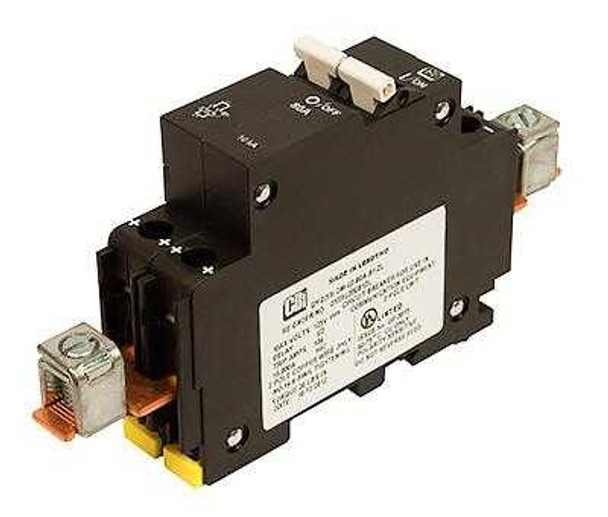

MidNite Solar 80 or 100 Amp Din Rail Mount Breaker rated at 150VDC. These polarized breakers are ETL evaluated and listed for US and Canada when used in MidNite Solar enclosures. Rated to break full load at rated voltage repeatedly with no damage.
Key Features
- Voltage Rating: 150VDC, polarized
- Available Ratings: 80A & 100A
- 100% Current Rating: Independent of ambient temperature in MidNite enclosures
- Wire Size: Accepts up to #2 wire
- Width: 1 inch (26mm)
- Torque Value: 20 in-lbs (2.3 Nm)
- Environmental Rating: Type 1 (Indoor)
- Listings: ETL listed for US & Canada
Ready to order?
Contact us for pricing and availability.
