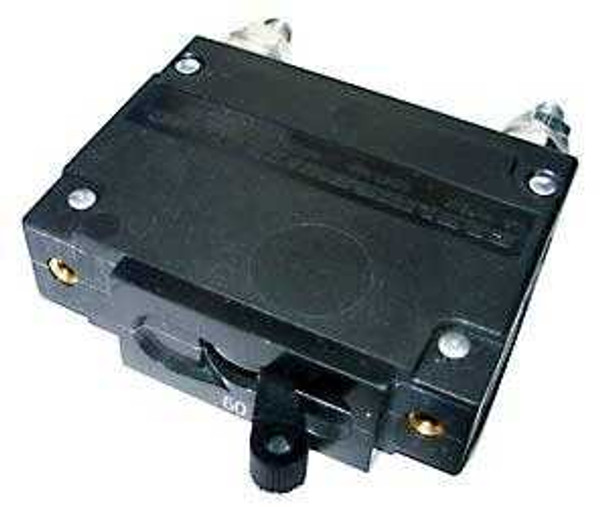

150VDC Panel Mount Breaker

150VDC Panel Mount Breaker – MidNite Solar

• The demand for reliable DC overcurrent protection in solar power systems has never been greater.
• Whether you're designing a residential off-grid solution or managing a commercial solar installation, choosing the right circuit protection device is essential to ensuring safety, longevity, and system performance.
• The 150VDC Panel Mount Breaker by MidNite Solar is a premium solution tailored for such applications.
• This robust and compact breaker is engineered to provide consistent protection in high-voltage DC environments—making it an essential component in modern solar power systems across the USA.

Overview of 150VDC Panel Mount Breaker

• The 150VDC Panel Mount Breaker from MidNite Solar is specifically designed for use in photovoltaic and battery-based systems.
• Built with durability and high performance in mind, this breaker is available in a wide range of amperages from 5A up to 100A.
• Its panel-mount design ensures it can be securely installed on standard electrical enclosures, making it a versatile choice for professionals and DIY installers alike.
• Backed by MidNite Solar’s renowned reliability and attention to quality, this breaker is an ideal choice for protecting sensitive solar components and wiring from overcurrent conditions.

Key Features of 150VDC Panel Mount Breaker

• Rated for 150 Volts DC
• Available in multiple amp ratings: 5A, 10A, 15A, 20A, 30A, 40A, 50A, 60A, 70A, 80A, 90A, and 100A
• High interrupting capacity: 10,000 AIC
• Compact design: 3/4" width for efficient panel space usage
• Electrical connection via 1/4" studs
• Panel-mount configuration (not DIN rail mounted)
• Compliant with NEC standards for solar applications
• Rugged and heat-resistant construction
• UL-listed and certified for the US market

Technical Specifications

• Voltage Rating: 150VDC
• Current Ratings: 5A – 100A
• Interrupting Capacity: 10,000 AIC
• Mounting Type: Panel Mount (not DIN rail)
• Connection Terminals: 1/4" studs
• Body Width: 3/4 inch
• Breaker Type: Thermal magnetic
• Environmental Rating: Indoor use
• Compliance: UL listed for safety and reliability

Benefits of Using 150VDC Panel Mount Breaker

Choosing the right breaker is not just about protection—it’s about maximizing performance and reliability. Here's what makes the 150VDC Panel Mount Breaker a standout product:

• Wide Range of Amp Ratings: Tailor the breaker to your exact system requirements, whether protecting a small string of solar panels or a high-load battery bank.
• Space-Saving Design: The slim 3/4" width allows for more breakers in limited enclosure space.
• Panel Mount Versatility: Easy integration into control panels, combiner boxes, and inverter enclosures.
• High Interrupting Capacity: With 10,000 AIC, it offers dependable protection even in higher-risk overcurrent scenarios.
• Long-Term Durability: Built to withstand repeated cycling and temperature extremes without degradation.
• Simple Installation: The 1/4" stud terminals provide secure and fast connections.

Common Use Cases

The 150VDC Panel Mount Breaker is designed for a wide range of solar energy and electrical system applications, including:

• Residential Off-Grid Solar Systems
• Battery Bank Protection
• Solar PV Combiner Boxes
• Inverter Input Protection
• Charge Controller Output Circuit Protection
• RV and Marine Solar Installations
• Backup Power Systems and ESS (Energy Storage Systems)

This breaker is ideal for systems requiring dependable, panel-mounted overcurrent protection at higher DC voltages—especially in environments where DIN rail mounting is not preferred or available.

Installation Guidance

To ensure safety and performance:

• Always match the amp rating with your wire gauge and system load
• Use appropriate torque settings for 1/4" studs to prevent arcing or loose connections
• Install in dry, indoor-rated electrical enclosures
• Ensure compatibility with MidNite Solar enclosures or similar panel-mounted boxes
• Adhere to local code and NEC guidelines for breaker placement and wire routing

Why Choose MidNite Solar’s 150VDC Panel Mount Breaker?

• With over two decades of experience in the solar industry, MidNite Solar continues to set the benchmark for electrical protection products. Their breakers are designed with performance and safety in mind, tested to exceed industry standards, and built to operate under real-world conditions.
• The 150VDC Panel Mount Breaker is no exception. It’s built to deliver full-rated load interruption at 150VDC again and again—without damage. Whether you’re a solar installer, electrician, or energy-conscious homeowner, this breaker gives you peace of mind with every connection.

Summary of Features

• Panel-mount design for non-DIN applications
• Available from 5A to 100A in single-pole configurations
• High 10,000 AIC for advanced circuit protection
• Rated for 150VDC — ideal for modern solar setups
• Durable build ensures years of trouble-free service
• Designed and supported by MidNite Solar, a trusted name in solar
