MidNite Solar
Two pole din rail mount 120/240 VAC breaker - 15
SKU: MNEAC15-2P
$45.50
Options
Two pole din rail mount 120/240 VAC breaker - 15
MNEAC15-2P
$45.50
Two pole din rail mount 120/240 VAC breaker - 20
MNEAC20-2P
$45.50
Two pole din rail mount 120/240 VAC breaker - 25
MNEAC25-2P
$0.00
Two pole din rail mount 120/240 VAC breaker - 30
MNEAC30-2P
$0.00
Two pole din rail mount 120/240 VAC breaker - 35
MNEAC35-2P
$0.00
Two pole din rail mount 120/240 VAC breaker - 40
MNEAC40-2P
$0.00
Two pole din rail mount 120/240 VAC breaker - 50
MNEAC50-2P
$0.00
Two pole din rail mount 120/240 VAC breaker - 60
MNEAC60-2P
$0.00
Categories
Have questions? Our team can help you select the right equipment for your project. Call 978-451-6890.
Product Overview

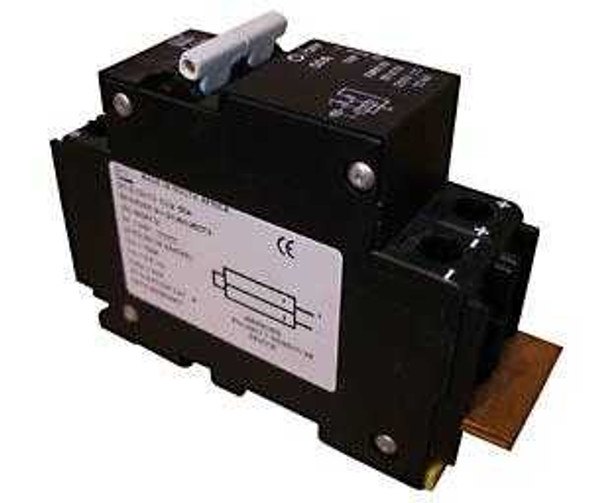

The MidNite Solar MNEAC-2P is a two pole DIN rail mount breaker designed for 120/240VAC systems. Available in branch circuit (15A, 20A) and supplementary protection (30A, 50A, 60A) configurations, it provides complete dual-pole circuit protection for solar and backup power installations.
Key Features
- Dual-Pole Protection: Full two-pole protection for 120/240VAC systems
- Branch & Supplementary Options: 15A, 20A (UL 489A, 10,000 AIC) and 30A, 50A, 60A (UL 1077, 3,000 AIC)
- DIN Rail Mount: Easy snap-in installation and replacement
- 100% Continuous Duty: Full rated current operation without damage
- Compact Width: 1 inch (26mm) for efficient panel layouts
- UL Listed: Certified for US & Canada
Specifications
- Voltage: 120/240VAC
- Poles: 2
- Torque: 20 In-Lbs (2.3 Nm)
- Environmental Rating: Type 1 (Indoor)
Ready to order?
Contact us for pricing and availability.
