16 Amp 600 VDC Din Rail mount breaker.

Read About The 165 VDC ETL TEST STORY

MidNite Solar 16 Amp 600 VDC Din Rail Mount Breaker – High-Voltage Protection for Solar Systems

• When it comes to protecting high-voltage solar energy systems, having the right circuit protection is critical.
• For installers, engineers, and solar system owners in the USA, choosing a high-performance breaker can mean the difference between long-term efficiency and costly system failures.
• The 16 Amp 600 VDC Din Rail mount breaker by MidNite Solar offers an exceptional solution tailored specifically for modern high-voltage direct current (DC) systems.
• In this detailed product guide, we’ll explore the unique features, technical specifications, benefits, and use cases of the 16 Amp 600 VDC Din Rail mount breaker, optimized for readability and search performance to help customers at solampio.com make an informed and confident purchase.

What is the 16 Amp 600 VDC Din Rail Mount Breaker?

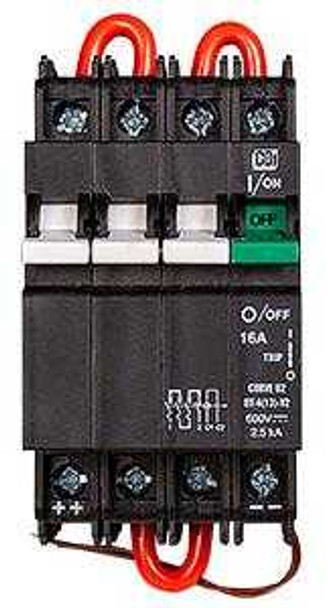

• The 16 Amp 600 VDC Din Rail mount breaker is a high-voltage, polarized circuit breaker designed by MidNite Solar for DIN rail-mounted applications.
• This 4-pole breaker provides reliable overcurrent protection for PV (photovoltaic) systems and other DC applications operating at voltages up to 600V. It is engineered to deliver robust, repeatable performance without damage, even under full rated load and voltage conditions.
• This breaker is ideal for advanced solar installations where space, safety, and voltage considerations demand precision and dependability.

Key Features of the 16 Amp 600 VDC Din Rail Mount Breaker

• High Voltage Rating (600 VDC): Handles demanding high-voltage DC loads commonly found in solar PV systems.
• Current Rating – 16A: Perfectly sized for medium-scale solar string protection.
• 4-Pole Configuration: Provides enhanced flexibility and safety in circuit design.
• Polarized Design: Ensures correct directional flow of current; suitable for systems where polarity matters.
• Compact Form Factor: 2-inch width (52mm) fits seamlessly into standard DIN rail panels.
• Tested Performance: Rated to break full load at rated voltage repeatedly—without any mechanical damage.
• 5-Year Warranty: Backed by MidNite Solar's commitment to long-term product reliability.
• Indoor Use Only: Type 1 environmental rating means it should be installed in a dry, enclosed area.

Technical Specifications

• Brand: MidNite Solar
• Product Name: 16 Amp 600 VDC Din Rail mount breaker
• Voltage Rating: 600 Volts DC
• Current Rating: 16 Amps
• Mounting Style: DIN Rail
• Number of Poles: 4
• Width: 2 inches (52mm)
• Torque Specification: 20 in-lbs (2.3 Nm)
• Wire Size Compatibility: 14 AWG to 6 AWG
• Environmental Rating: Type 1 (Indoor)
• Certifications: Listed for use in the USA & Canada when installed in MidNite Solar enclosures
• Warranty: 5 years

Why MidNite Solar?

• MidNite Solar has long been a leader in innovative, high-performance components for renewable energy systems.
• Known for quality and reliability, the brand’s breakers are extensively tested under extreme conditions. The 16 Amp 600 VDC Din Rail mount breaker is ETL tested and proven to operate safely and consistently, even during repetitive high-load interruptions.
• The breaker’s tested performance under a 165 VDC ETL test confirms that MidNite’s engineering standards are well above industry norms—ensuring you get reliable protection that won’t wear out prematurely.

Top Benefits of Using the 16 Amp 600 VDC Din Rail Mount Breaker

• Reliable Overcurrent Protection: Prevents electrical damage due to short circuits or overloads in solar and battery systems.
• Durability Under Load: Designed to handle repeated full-load interruptions with no degradation or damage.
• Compact DIN Rail Installation: Saves panel space while offering strong electrical protection.
• Safe Polarity-Controlled Design: Polarized nature ensures correct current direction, improving system reliability.
• Wide Wire Compatibility: Accommodates common wire sizes used in residential and commercial solar installations.
• UL/ETL Compliance: Listed for safe use in North America when used with certified MidNite Solar enclosures.
• Ideal for High-Voltage Systems: Supports voltage levels up to 600V DC, matching the demands of larger solar arrays.

Use Cases and Applications

The 16 Amp 600 VDC Din Rail mount breaker is versatile enough to be used in multiple solar system configurations:

• Residential Solar Installations: Protects PV strings, charge controllers, and inverter inputs.
• Commercial Solar Systems: Ensures high-voltage DC safety in larger solar deployments.
• Battery Storage Systems: Protects battery banks and associated charging equipment.
• Combiner Boxes: Used inside DIN rail-style combiner boxes for modular safety architecture.
• Off-Grid and Hybrid Systems: A critical component in off-grid energy systems requiring safe disconnection at high voltages.

Installation Guidelines

• Mounting: Easily snaps into standard DIN rail mounting panels.
• Torque Settings: Tighten connections to 20 in-lbs (2.3 Nm) to ensure optimal contact and safety.
• Wiring: Accepts wire sizes from 14 to 6 AWG—flexible for most field applications.
• Environment: Install indoors only (Type 1 rating), in dry, temperature-controlled environments.
• Breaker Sizing: Always use the correctly rated breaker to match the current of the circuit it's protecting.
• Compatibility: For full-rated current usage, install only in approved MidNite Solar enclosures.

How It Compares to Other Breakers

Compared to conventional DC breakers, the 16 Amp 600 VDC Din Rail mount breaker offers several advantages:

• Higher DC voltage capacity (600 VDC vs. standard 150–300 VDC models)
• 4-pole flexibility for advanced circuit configurations
• Longer life expectancy under high-load usage
• Secure DIN rail compatibility vs. bulky panel-mount alternatives

Why You Need a High-Quality Breaker in Your Solar System

• In solar energy systems, especially those using high-voltage strings or battery banks, the risk of electrical faults cannot be ignored. A low-quality or misrated breaker may not only fail to protect your system but could also result in fire hazards or expensive equipment damage.
• The MidNite Solar 16 Amp 600 VDC Din Rail mount breaker provides the essential overcurrent protection you need to ensure safe, continuous operation of your renewable energy investment.

Product Summary

• Product Name: 16 Amp 600 VDC Din Rail mount breaker
• Brand: MidNite Solar
• Rated Current: 16 Amps
• Voltage: 600 VDC
• Installation Type: DIN Rail
• Usage: Overcurrent protection for solar PV and battery systems
• Certifications: ETL/UL Listed for US & Canada (when used in MidNite Enclosures)
• Warranty: 5 Years
• Ideal For: Residential, Commercial, Off-Grid, and Hybrid Solar Systems

If you're looking for high-voltage, reliable protection for your solar energy system, the 16 Amp 600 VDC Din Rail mount breaker by MidNite Solar is the smart choice. Its durable construction, industry certifications, and performance reliability make it an indispensable component for safe solar power distribution.

Order your MidNite Solar 16 Amp 600 VDC Din Rail mount breaker today at solampio.com and power your system with confidence, safety, and efficiency.
