MidNite Solar

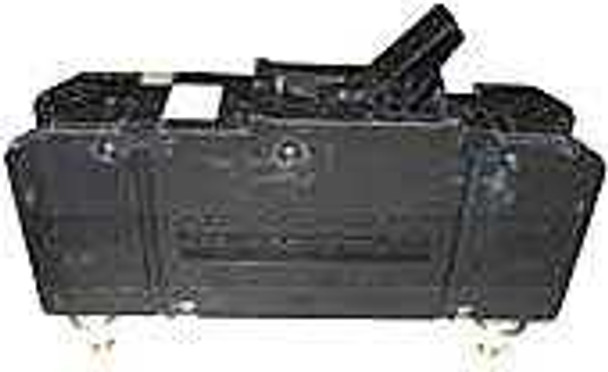

125VDC Panel Mount Breaker - 3/8" studs 1.5" - 175
SKU: MNEDC175
$100.00
Options
125VDC Panel Mount Breaker - 3/8" studs 1.5" - 175
MNEDC175
$100.00
125VDC Panel Mount Breaker - 3/8" studs 1.5" - 250
MNEDC250
$75.00
Categories
Have questions? Our team can help you select the right equipment for your project. Call 978-451-6890.
Product Overview
MidNite Solar 125VDC panel mount breaker with 3/8" studs and 1.5" width. Rated to break full load at rated voltage repeatedly with no damage. Non-polarized design allows installation in either direction.
Key Features
- 125VDC Rating: Purpose-built for DC solar and battery circuits
- 50,000 AIC at 125VDC: High interrupting capacity for safe fault clearing
- Non-Polarized: Install in either direction to simplify wiring
- 100% Rated Current: When mounted in a MidNite enclosure
- 3/8" Studs: Heavy-duty terminal connections
- Panel Mount: 1.5" width with included mounting screws
Specifications
- Voltage: 125VDC
- AIC: 50,000 at 125VDC
- Width: 1.5 in. (39mm)
- Stud Size: 3/8"
- Torque: 15 ft-lbs (20.4 Nm)
- Environmental Rating: Type 1 (Indoor)
- Mounting Hardware: Two 10-32 x 3/8 pan head Phillips screws included
- Listed: US & Canada
- Warranty: 5 years
Ready to order?
Contact us for pricing and availability.
