Description
DESCRIPTION:

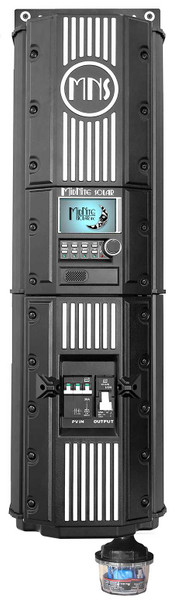

The Hawke's Bay 120 Is The Most Powerful And Versatile Systems In Its Class. Ideal For Large Size Stand Alone And Grid-Tied Renewable Energy Systems.
PRODUCT FEATURES
- 120 Amp 48V Output
- Includes 1 MNSPD-600 (Surge Protection Device)
- Operating Voltage Of 185 To 585 Volts
- Ideal For Larger DC Coupled Battery Based On-Grid And Off-Grid Installations
- Talking MNGP2 Display (Canbus) No Other Display Required When Coupled With MidNite Inverters And Other MidNite Products
- Rotary Knob With Push Button For Ease Of Navigating Menus
- Hawke's Bay Breaker Box (MNHAWKE'S BAY BB 125) Protects Against Excessive Battery Voltage Excursions
- The MNGP2 Graphics And Programming Module Allows Communication, Monitoring And Programming Of All Future MidNite Products From A Single Unit.
- Die Cast Aluminum Enclosure
- Optional Plug In AF/GF Module
- Optional Plug In Sunspec Compliant Rapid Shutdown Transmitter (Module Or String Level)
- BTS Included
- 2 Auxiliary Outputs
- Quiet Fan Cooled. Fans Relatively Easy To Replace
- Companion To The 7000 Watt Rosie Inverter
- Listed For US And Canada
- Safety Certifications: UL1741 And CE Low Voltage Directive EN50178
- 5 Year Warranty
- Listed For US And Canada
- Designed And Assembled In The USA
SPECIFICATIONS
| Hawke's Bay 120 Pre-Wired System - MNHAWKE'S BAY 120 PW | |
| Nominal Battery Voltage | 48V |
| Maximum Output Current | 120 Amps |
| PV Open Circuit Voltage VOC | 600VDC |
| Power Conversion Efficiency | 98% (Typical System) |
| Arc Fault And NEC 2020 Ground Fault Protection | Optional Plugin Modules - User Installed |
| Charging Regulation | Bulk, Absorb, Float As Well As Equalization |
| Battery Voltage Regulation Set Points | 40V To 65V |
| Equalization Charging | Adjustable Voltage And Duration |
| Battery Over Voltage | Fully Protected. The Optional Barcelona Breaker Box (MNBCLNA BB) Automatically Trips PV Input Breaker If Battery Exceeds 68VDC |
| Battery Short Circuit | Fully Protected |
| Battery Temp Compensation | Automatic When BTS Is Installed. Adjustable MV Per Degree C Per 2V Cell |
| Programmable Auxiliary | 2 Auxiliary Outputs |
| Graphic Display | MNGP2 - 64 X 122 |
| Stacking Cables For System Networking | Standard CAT5 - Canbus |
| Communications | Canbus |
| Remote Display | MNGP2 Can Be Relocated And A Second Display Can Be Added |
| Firmware Updates | Phone Application Software For Firmware Updates |
| Terminal Rating | 75C |
| Data Logging | 380 Days Of Daily History |
| Positive Ground Applications | Requires 2 Pole Input And Output Breakers |
| Operating Temperature | Minimum Of -40C To 50C (Controller Will Auto Derate As Temperature Rises Above 25C) |
| Environmental Rating | Indoor Type 1 |
| Warranty | 7 Years |
| Weight & Dimensions | Xx Lbs. 32.30” X 9.79” X X” |
| Shipping Dimensions | 40 X 16.5 X 12 (Inches) |
| Certifications | Listed By ETL For US & Canada |
DESCRIPTION:
The Hawke's Bay 90 Is One Of The Most Powerful And Versatile Systems In Its Class. Ideal For Large Size Stand Alone And Grid-Tied Renewable Energy Systems.
PRODUCT FEATURES
- 90 Amp 48V Output
- Operating Voltage Of 185 To 585 Volts
- Includes 1 MNSPD-600 (Surge Protection Device)
- Ideal For Larger DC Coupled Battery Based On-Grid And Off-Grid Installations
- Talking MNGP2 Display (Canbus) No Other Display Required When Coupled With MidNite Inverters And Other MidNite Products
- Rotary Knob With Push Button For Ease Of Navigating Menus
- Hawke's Bay Breaker Box (MNHAWKE'S BAY BB 125) Protects Against Excessive Battery Voltage Excursions
- The MNGP2 Graphics And Programming Module Allows Communication, Monitoring And Programming Of All Future MidNite Products From A Single Unit.
- Die Cast Aluminum Enclosure
- Optional Plug In AF/GF Module
- Optional Plug In Sunspec Compliant Rapid Shutdown Transmitter (Module Or String Level)
- BTS Included
- 2 Auxiliary Outputs
- Quiet Fan Cooled. Fans Relatively Easy To Replace
- Companion To The 7000 Watt Rosie Inverter
- Listed For US And Canada
- Safety Certifications: UL1741 And CE Low Voltage Directive EN50178
- 5 Year Warranty
- Listed For US And Canada
- Designed And Assembled In The USA
| Hawke's Bay 120 Pre-Wired System - MNHAWKE'S BAY 90 PW | |
| Nominal Battery Voltage | 48V |
| Maximum Output Current | 90 Amps |
| PV Open Circuit Voltage VOC | 600VDC |
| Power Conversion Efficiency | 98% (Typical System) |
| Arc Fault And NEC 2020 Ground Fault Protection | Optional Plugin Modules - User Installed |
| Charging Regulation | Bulk, Absorb, Float As Well As Equalization |
| Battery Voltage Regulation Set Points | 40V To 65V |
| Equalization Charging | Adjustable Voltage And Duration |
| Battery Over Voltage | Fully Protected. The Optional Barcelona Breaker Box (MNBCLNA BB) Automatically Trips PV Input Breaker If Battery Exceeds 68VDC |
| Battery Short Circuit | Fully Protected |
| Battery Temp Compensation | Automatic When BTS Is Installed. Adjustable MV Per Degree C Per 2V Cell |
| Programmable Auxiliary | 2 Auxiliary Outputs |
| Graphic Display | MNGP2 - 64 X 122 |
| Stacking Cables For System Networking | Standard CAT5 - Canbus |
| Communications | Canbus |
| Remote Display | MNGP2 Can Be Relocated And A Second Display Can Be Added |
| Firmware Updates | Phone Application Software For Firmware Updates |
| Terminal Rating | 75C |
| Data Logging | 380 Days Of Daily History |
| Positive Ground Applications | Requires 2 Pole Input And Output Breakers |
| Operating Temperature | Minimum Of -40C To 50C (Controller Will Auto Derate As Temperature Rises Above 25C) |
| Environmental Rating | Indoor Type 1 |
| Warranty | 7 Years |
| Weight & Dimensions | Xx Lbs. 32.30” X 9.79” X X” |
| Shipping Dimensions | 40 X 16.5 X 12 (Inches) |
| Certifications | Listed By ETL For US & Canada |
