Victron Energy

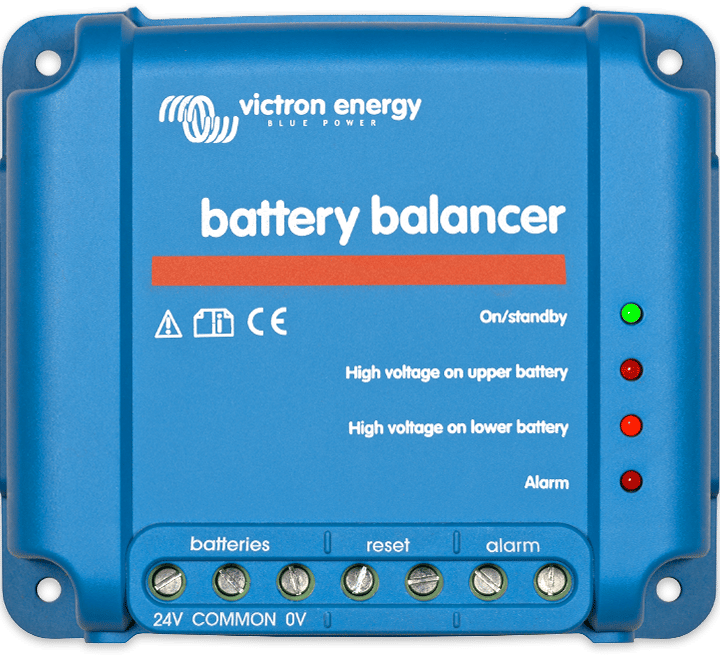

Battery Balancer
SKU: BBA000100100
$0.00
Categories
Have questions? Our team can help you select the right equipment for your project. Call 978-451-6890.
Product Overview
The Victron Energy Battery Balancer equalizes the state of charge between two series-connected 12V batteries. It prevents voltage imbalance — a leading cause of premature battery failure — by redistributing energy from the higher-voltage battery to the lower one.
Key Features
- Automatic Equalization: Continuously monitors and balances voltage between two 12V batteries wired in series (24V systems)
- Cascade for 48V: Connect three Battery Balancers to balance four series-connected batteries in a 48V bank
- Current Capacity: Balances up to 0.7A when the voltage differential between batteries exceeds 50mV
- LED Indicators: Real-time status display showing balancing activity and alarm conditions
- Alarm Output: Provides a warning signal when voltage differential exceeds 200mV for corrective action
Frequently Asked Questions
When does the Victron Battery Balancer activate?+
The balancer turns on automatically when the charge voltage of a 24V battery system increases to more than 27.3V. It then begins comparing and equalizing the voltage between the series-connected batteries.
Can I use this balancer for a 48V battery bank?+
Yes. While one balancer is used for a 24V system (two 12V batteries), you can parallel three Battery Balancers to effectively balance a 48V battery bank.
How much current does the balancer draw to equalize the batteries?+
The unit will draw a current of up to 0.7A from the battery (or parallel string) with the highest voltage to ensure all batteries converge to the same state of charge.
Why is battery balancing important for solar systems?+
In series-connected banks, batteries often drift to different states of charge. This leads to one battery being overcharged while the other is undercharged, causing premature sulfation or water loss and shortening the lifespan of the entire bank.
