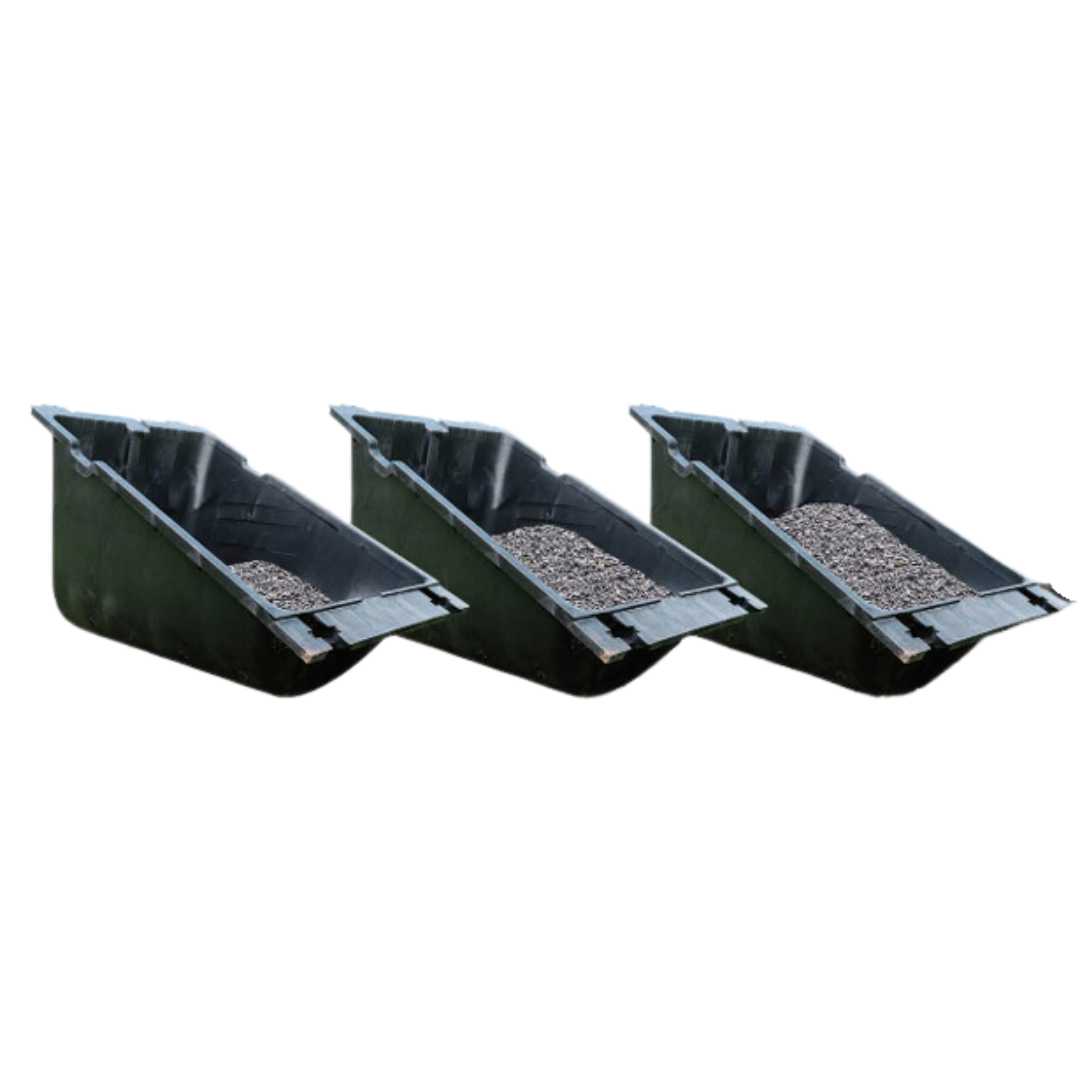

PowerField PowerRack Ground Mount

SKU: PowerRack-1000

The PowerField PowerRack 1000 is a no-dig, tool-free solar ground mount for rapid deployment. Ballasted design eliminates concrete or ground penetration. 100% American-made and recyclable.

Product Overview

PowerField Energy's PowerRack PV solar ground mount system is a revolutionary solution for low cost, low impact versatile applications. This ballasted system requires no ground penetration and no tools, dramatically reducing costs and enhancing project flexibility.

PowerField Energy's PowerRack is a 100% American-made ground mounted solar rack that simplifies, accelerates, and lowers costs for commercial solar projects.

No Concrete Needed

The rack is a one-piece container that is filled onsite using any local ballast material (gravel, dirt, rocks) with no tools required.

End-to-End Sustainability

PowerRack is the only solar racking system on the market that is fully recyclable at end of life (40+ years), helping installers reach sustainability goals even faster.

Low Maintenance & Durable

Made from long-lasting and UV/weather-resistant high density polyethylene, PowerRack compromises nothing on durability. PowerRack's low position to the ground results in higher resistance to wind (tested up to 120mph) and thrives in extreme weather conditions.

PowerField's manufacturing operations are entirely located in the US. Thus, 100% of the labor, machinery, plant, and other processing costs are domestic. Consequently, the PowerRack is always at a minimum 68% Made In The USA.

Each unit includes the PowerRack 1000, module size adapter, mounting retainer and retainer tab. Installar to provide balast weight of gravel, dirt or sand.

Power Whenever, Wherever

PowerField Energy's PowerRack is a revolutionary solar racking solution that requires no ground penetration or assembly.

Portable Convenience

PowerRack's design makes it easy to bring portable solar power to wherever you need it. Length: 37" / 935mm

Width: 26" / 650mm

Height: 26" / 650mm

Weight (empty): 15lbs / 6.9kg

Tilt angle: 25 degrees1200 units is one 52' dry van truck load with 24 pallets.
Palletized: 50 units, 52x48x82, 960 lbs., Class 110, NMFC 156600.

Frequently Asked Questions

What material should I use for ballast in the PowerRack 1000?+

The PowerRack is designed to be filled onsite using local ballast materials such as gravel, crushed stone, dirt, or sand. Most installers prefer 3/4-inch crushed stone for optimal drainage and weight density.

Is the PowerField PowerRack compatible with all solar panels?+

The PowerRack 1000 includes a module size adapter and mounting retainers that accommodate most standard 60-cell and 72-cell solar panels. It is recommended to verify your specific panel dimensions against the 37-inch rack length for optimal support.

What is the wind rating for the PowerField ground mount?+

When properly ballasted, the PowerRack system is tested to withstand wind speeds of up to 120mph. Its low-profile design and aerodynamic shape help maintain stability in extreme weather conditions.

Does this system require a concrete foundation?+

No. One of the primary advantages of the PowerRack is that it requires zero concrete and zero ground penetration, making it ideal for rocky soil, capped landfills, or temporary installations.

Ready to order?

Request Quote 978-451-6890
