S-5-T

SKU: S-5-T-STD

This is a variant of S-5-T

Options

S-5-T

S-5-T-STD

$8.69

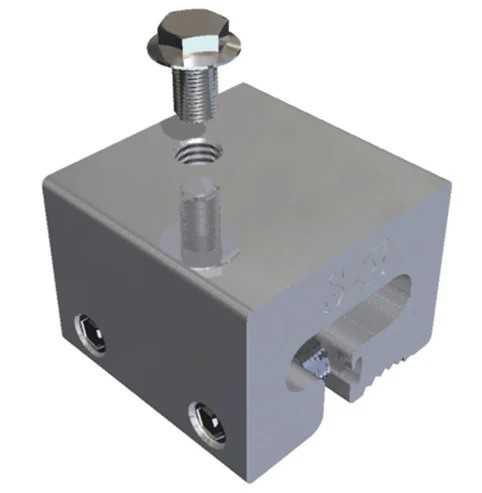

The S-5-T is a heavy-duty non-penetrating clamp for T-shaped seam metal roofs and architectural single-fold seams. Two-piece design allows installation anywhere along seams for solar, snow retention, and HVAC.

Product Overview

The S-5-T clamp is a specialized clamp designed to fit profiles with a T-shaped seam configuration. It is also compatible with architectural single-fold or angle-seam profiles that have a horizontal projection of 5/8 or less. This heavy-duty, non-penetrating seam clamp is specifically engineered for various rooftop installations, including HVAC systems, snow retention systems, and more.

The S-5-T clamp features a two-piece design, which enables easy installation at any point along the panel seam. It comes equipped with two 3/8″x 24 x 0.80″ round nose set screws and one M8-1.25 x 16mm Hex Flange Bolt, all made of stainless steel. The use of stainless steel hardware ensures durability and resistance to corrosion.

To ensure its reliability, the S-5-T clamp has undergone load-to-failure testing conducted by an independent laboratory. It has been proven suitable for use with all snow retention systems, including ColorGard.

Overall, the S-5-T clamp provides a secure and effective solution for heavy-duty rooftop installations, offering versatility and compatibility with various profiles and systems.

Product Documents

Manuals & Guides

(Distributor) Corporate_Style_Guide_062424.pdf

Download

(Distributor) Corporate_Style_Guide_062424.pdf

Download

Frequently Asked Questions

Which roof profiles are compatible with the S-5-T clamp?+

The S-5-T is designed specifically for 'T' shaped seam configurations. It also fits architectural 'single-fold' or 'angle-seam' profiles that have a horizontal projection of 5/8" or less. It is commonly used with McElroy Metal 138T & 238T and Centria SRS profiles.

Does the S-5-T clamp pierce the roof material?+

No, the S-5-T is a non-penetrating clamp. It uses two patented round-nose stainless steel setscrews to compress the seam material against the insert, providing superior holding strength without puncturing the metal or voiding the roof warranty.

What hardware is included with the S-5-T clamp?+

Each S-5-T clamp comes complete with two 3/8"x 24 x 0.80" round-nose stainless steel setscrews and one M8-1.25 x 16mm hex flange bolt for mounting your solar racking or accessories.
