Hawke's Bay Pre-Wired System - 90
SKU: MNHAWKESBAY90-PW
This is a variant of Hawke's Bay Pre-Wired System
Other Options
Hawke's Bay Pre-Wired System - 120
MNHAWKESBAY120-PW
$2550

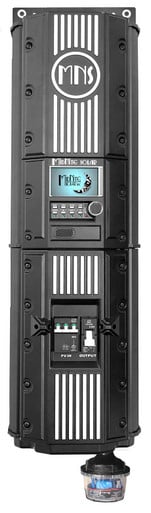

Hawke's Bay Pre-Wired System - 90
MNHAWKESBAY90-PW
$2350
The Midnite Solar Hawke's Bay Pre-Wired System is a high-performance 600VDC MPPT charge controller solution designed to simplify 48V off-grid and grid-tied installs. It features a built-in breaker box, surge protection, and a sophisticated 'talking' display for streamlined system management.
Categories
Product Details
$2350
Have questions? Our team can help you select the right equipment for your project. Call 978-451-6890.
Product Overview
DESCRIPTION: The Hawke's Bay 120 Is The Most Powerful And Versatile Systems In Its Class. Ideal For Large Size Stand Alone And Grid-Tied Renewable Energy Systems. PRODUCT FEATURES
120 Amp 48V Output
Includes 1 MNSPD-600 (Surge Protection Device)
Operating Voltage Of 185 To 585 Volts
Ideal For Larger DC Coupled Battery Based On-Grid And Off-Grid Installations
Talking MNGP2 Display (Canbus) No Other Display Required When Coupled With MidNite Inverters And Other MidNite Products
Rotary Knob With Push Button For Ease Of Navigating Menus
Hawke's Bay Breaker Box (MNHAWKE'S BAY BB 125) Protects Against Excessive Battery Voltage Excursions
The MNGP2 Graphics And Programming Module Allows Communication, Monitoring And Programming Of All Future MidNite Products From A Single Unit.
Die Cast Aluminum Enclosure
Optional Plug In AF/GF Module
Optional Plug In Sunspec Compliant Rapid Shutdown Transmitter (Module Or String Level)
BTS Included
2 Auxiliary Outputs
Quiet Fan Cooled. Fans Relatively Easy To Replace
Companion To The 7000 Watt Rosie Inverter
Listed For US And Canada
- Safety Certifications: UL1741 And CE Low Voltage Directive EN50178
5 Year Warranty
Listed For US And Canada
Designed And Assembled In The USA
SPECIFICATIONSHawke's Bay 120 Pre-Wired System - MNHAWKE'S BAY 120 PWNominal Battery Voltage
48VMaximum Output Current
120 AmpsPV Open Circuit Voltage VOC
600VDCPower Conversion Efficiency
98% (Typical System)Arc Fault And NEC 2020 Ground Fault Protection
Optional Plugin Modules - User InstalledCharging Regulation
Bulk, Absorb, Float As Well As EqualizationBattery Voltage Regulation Set Points
40V To 65VEqualization Charging
Adjustable Voltage And DurationBattery Over Voltage
Fully Protected. The Optional Barcelona Breaker Box (MNBCLNA BB) Automatically Trips PV Input Breaker If Battery Exceeds 68VDCBattery Short Circuit
Fully ProtectedBattery Temp Compensation
Automatic When BTS Is Installed. Adjustable MV Per Degree C Per 2V CellProgrammable Auxiliary
2 Auxiliary OutputsGraphic Display
MNGP2 - 64 X 122Stacking Cables For System Networking
Standard CAT5 - CanbusCommunications
CanbusRemote Display
MNGP2 Can Be Relocated And A Second Display Can Be AddedFirmware Updates
Phone Application Software For Firmware UpdatesTerminal Rating
75CData Logging
380 Days Of Daily HistoryPositive Ground Applications
Requires 2 Pole Input And Output BreakersOperating Temperature
Minimum Of -40C To 50C (Controller Will Auto Derate As Temperature Rises Above 25C)Environmental Rating
Indoor Type 1Warranty
7 YearsWeight & Dimensions
Xx Lbs. 32.30" X 9.79" X X"Shipping Dimensions
40 X 16.5 X 12 (Inches)Certifications
Listed By ETL For US & CanadaDESCRIPTION:The Hawke's Bay 90 Is One Of The Most Powerful And Versatile Systems In Its Class. Ideal For Large Size Stand Alone And Grid-Tied Renewable Energy Systems. PRODUCT FEATURES
90 Amp 48V Output
Operating Voltage Of 185 To 585 Volts
Includes 1 MNSPD-600 (Surge Protection Device)
Ideal For Larger DC Coupled Battery Based On-Grid And Off-Grid Installations
Talking MNGP2 Display (Canbus) No Other Display Required When Coupled With MidNite Inverters And Other MidNite Products
Rotary Knob With Push Button For Ease Of Navigating Menus
Hawke's Bay Breaker Box (MNHAWKE'S BAY BB 125) Protects Against Excessive Battery Voltage Excursions
The MNGP2 Graphics And Programming Module Allows Communication, Monitoring And Programming Of All Future MidNite Products From A Single Unit.
Die Cast Aluminum Enclosure
Optional Plug In AF/GF Module
Optional Plug In Sunspec Compliant Rapid Shutdown Transmitter (Module Or String Level)
BTS Included
2 Auxiliary Outputs
Quiet Fan Cooled. Fans Relatively Easy To Replace
Companion To The 7000 Watt Rosie Inverter
Listed For US And Canada
- Safety Certifications: UL1741 And CE Low Voltage Directive EN50178
5 Year Warranty
Listed For US And Canada
Designed And Assembled In The USA
SPECIFICATIONSHawke's Bay 120 Pre-Wired System - MNHAWKE'S BAY 90 PWNominal Battery Voltage
48VMaximum Output Current
90 AmpsPV Open Circuit Voltage VOC
600VDCPower Conversion Efficiency
98% (Typical System)Arc Fault And NEC 2020 Ground Fault Protection
Optional Plugin Modules - User InstalledCharging Regulation
Bulk, Absorb, Float As Well As EqualizationBattery Voltage Regulation Set Points
40V To 65VEqualization Charging
Adjustable Voltage And DurationBattery Over Voltage
Fully Protected. The Optional Barcelona Breaker Box (MNBCLNA BB) Automatically Trips PV Input Breaker If Battery Exceeds 68VDCBattery Short Circuit
Fully ProtectedBattery Temp Compensation
Automatic When BTS Is Installed. Adjustable MV Per Degree C Per 2V CellProgrammable Auxiliary
2 Auxiliary OutputsGraphic Display
MNGP2 - 64 X 122Stacking Cables For System Networking
Standard CAT5 - CanbusCommunications
CanbusRemote Display
MNGP2 Can Be Relocated And A Second Display Can Be AddedFirmware Updates
Phone Application Software For Firmware UpdatesTerminal Rating
75CData Logging
380 Days Of Daily HistoryPositive Ground Applications
Requires 2 Pole Input And Output BreakersOperating Temperature
Minimum Of -40C To 50C (Controller Will Auto Derate As Temperature Rises Above 25C)Environmental Rating
Indoor Type 1Warranty
7 YearsWeight & Dimensions
Xx Lbs. 32.30" X 9.79" X X"Shipping Dimensions
40 X 16.5 X 12 (Inches)Certifications
Listed By ETL For US & Canada
