S-5!
S-5-S
SKU: S-5-S-STD
$6.69
Options
S-5-S
S-5-S-STD
$6.69
Categories
Have questions? Our team can help you select the right equipment for your project. Call 978-451-6890.
Product Overview

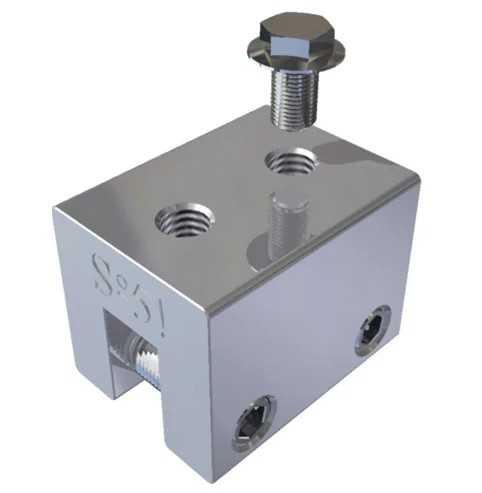

The S-5-S is a non-penetrating standing seam metal roof clamp designed for secure attachment of solar panels, snow guards, signage, and other rooftop accessories. Its innovative design preserves roof integrity while providing reliable holding strength.
Key Features
- Non-Penetrating: Clamps to standing seam without puncturing the roof surface
- Multi-Purpose: Suitable for solar panels, snow guards, signs, and other accessories
- Durable Materials: Built for reliable performance in all weather conditions
- Easy Installation: No specialized tools or roof modifications required
Specifications
| torque_wrench_tension_22ga_steel | 160 inch pounds |
| torque_wrench_tension_22ga_steel_max | 180 inch pounds |
| torque_wrench_tension_other_metals | 130 inch pounds |
| torque_wrench_tension_other_metals_max | 150 inch pounds |
| threaded_hole_diameter | 8 mm |
| threaded_hole_pitch | 1.25 mm |
| hex_flange_bolt_length | 16 mm |
| setscrew_thread_diameter | 3 8 inches |
| setscrew_thread_pitch | 24 inches |
| setscrew_length | 0.8 inches |
| Seam size limit for crimping | 0.5 inches |
| Clamp material | Structural aluminum |
| Included hardware material | Stainless steel |
| Compatibility | Most common metal roofing materials excluding copper |
| Warranty | Limited lifetime warranty |
