Description

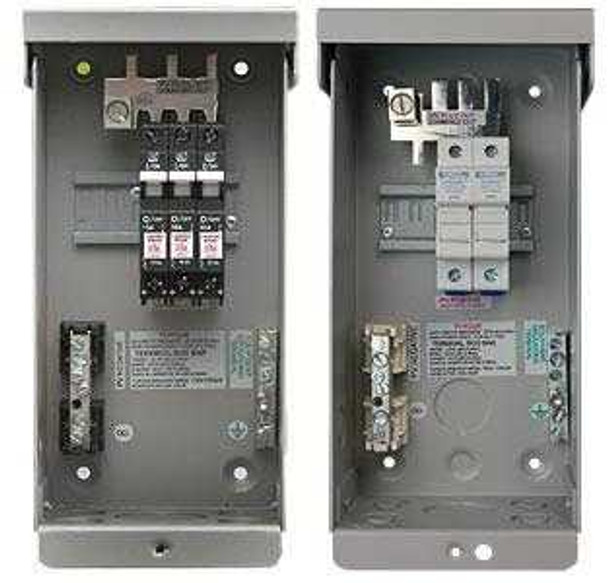

These are the enclosures only - they are pictured wired with breakers. You must buy the breakers and wire the box. They are also available prewired for additional cost.
$154.00
Enclosure only
(For 150 VDC charge controllers and 600 VDC grid tie inverters)
Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two touch-safe fuse holders.
(For 150 VDC charge controllers and 600 VDC grid tie inverters)
Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two touch-safe fuse holders.
Size: 10.5"L x 4.5"W x 3.5"D
Boxed: 11"L x 5"W x 4"D
Weight: 2 Lbs.
$191.00
Enclosure only
(For 150 VDC charge controllers and 600 VDC grid tie inverters) (The most popular PV combiner in North America.) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept six 150VDC breakers or 4 touch-safe fuse holders.
(For 150 VDC charge controllers and 600 VDC grid tie inverters) (The most popular PV combiner in North America.) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept six 150VDC breakers or 4 touch-safe fuse holders.
Size: 13.5"L x 8"W x 3.5"D
Boxed: 14"L x 9"W x 4"D
Weight: 4 Lbs.
$205.00
Enclosure only
(For 200 and 250 VDC charge controllers) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept three 300 VDC MidNite Solar breakers.
Breakers sold separately.
(For 200 and 250 VDC charge controllers) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept three 300 VDC MidNite Solar breakers.
Breakers sold separately.
Size: 13.5"L x 8"W x 3.5"D
Boxed: 14"L x 9"W x 4"D
Weight: 5 Lbs.
$330.00
Enclosure only
(For 150 VDC charge controllers and 600 VDC grid tie inverters) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 12 150VDC breakers or 10 touch-safe fuse holders. Can support two inverters of up to 5 strings each, or a transformerless inverter of up to 5 strings.
(For 150 VDC charge controllers and 600 VDC grid tie inverters) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 12 150VDC breakers or 10 touch-safe fuse holders. Can support two inverters of up to 5 strings each, or a transformerless inverter of up to 5 strings.
Size: 14.5"L x 12W" x 3.5"D
Boxed: 16"L x 14"W x 5"D
Weight: 8 Lbs.
$342.00
Enclosure only
(For 200 and 250VDC charge controllers) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 6 300VDC breakers.
(For 200 and 250VDC charge controllers) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 6 300VDC breakers.
Size: 14.5"L x 12W" x 3.5"D
Boxed: 16"L x 14"W x 5"D
Weight: 8 Lbs.
$495.00
MODEL OPTIONS
MNPV6-GFP15-DC
$475.00
Gray aluminum type 3R rainproof enclosure with insulating dead front
Size: 13.5"L x 8"W x 3.5"D
Boxed: 14"L x 9"W x 4"D
Weight: 5 Lbs.
$146.00
1000 volt transition box. Gray aluminum type 3R rainproof enclosure.
Size: 13.5"L x 8"W x 3.5"D
Boxed: 14"L x 9"W x 4"D
Weight: 4 Lbs.
$175.00
Enclosure only
(For 1000 VDC grid tie inverters)
Gray aluminum type 3R rainproof enclosure with deadfront, will accept two 1000 VDC fuse holders.
(For 1000 VDC grid tie inverters)
Gray aluminum type 3R rainproof enclosure with deadfront, will accept two 1000 VDC fuse holders.
Size: 10.5"L x 4.5"W x 3.5"D
Boxed: 11"L x 5"W x 4"D
Weight: 2 Lbs.
$225.00
Enclosure only
(For 1000 VDC grid tie inverters) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 4 1000VDC fuse holders.
(For 1000 VDC grid tie inverters) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 4 1000VDC fuse holders.
Size: 13.5"L x 8"W x 3.5"D
Boxed: 14"L x 9"W x 4"D
Weight: 4 Lbs.
$340.00
Enclosure only - NOT SOLD WITH FUSEHOLDERS
(For 1000 VDC grid tie inverters) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 10 1000VDC fuse holders.
(For 1000 VDC grid tie inverters) Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 10 1000VDC fuse holders.
Size: 14.5"L x 12W" x 3.5"D
Boxed: 16"L x 14"W x 5"D
Weight: 8 Lbs.
