Description
This .063" thick copper bus has four fingers spaced at 3/4" (19mm) intervals One box lug is provided that accommodates 14-1/0 AWG wire.
Current Rating: 80A
Breaker and Busbar Torque Values
Related Products
Related Products

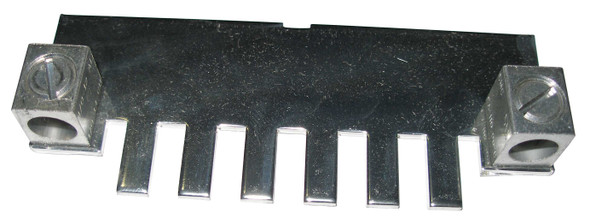

120A Busbar for MNPV6
