Description

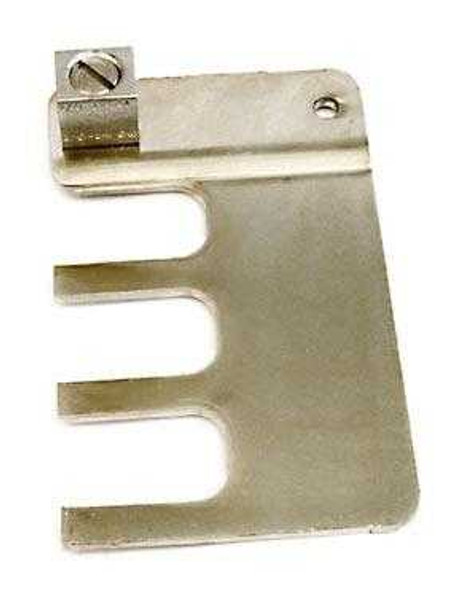

1/8" thick tin plated copper accommodates up to three 300VDC MidNite circuit breakers.
This bus bar is used in the MNPV6-250, The MNPV6-250Disco and two of them are used in the MNPV12-250
Current Rating: 168A
Breaker and Busbar Torque Values
