Description

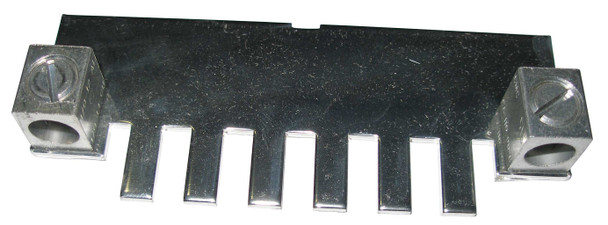

MNPV6-BREAKER-BB This .093" Thick Copper Bus Has Six Fingers Spaced At 1/2" (13mm) Intervals Two Box Lugs Are Provided To Accommodate 14-1/0 AWG Wire.
Current Rating: 120A
Breaker And Busbar Torque Values
Current Rating: 120A
Breaker And Busbar Torque Values
- Environmental Rating - Type 1 (Indoor)
- Warranty - 5 Yrs.
Related Products
Related Products
80 amp Busbar for MNPV6
MidNite Solar
$32.00
This .063" thick copper bus has four fingers spaced at 3/4" (19mm) intervals One box lug is provided that accommodates 14-1/0 AWG wire.Current Rating: 80ABreaker and Busbar Torque Values

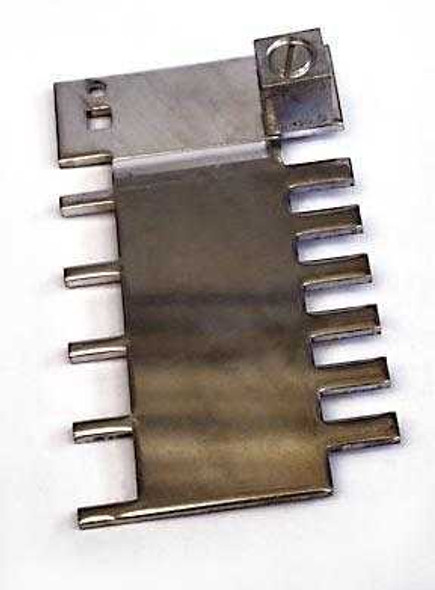

Busbar for MNPV12
